PHOEN 110
EUR 7 135,95
Ind. price: EUR 7,135.95
Technical data
Item number: 168900 |
EAN-nr: 7050481689009 |
Opprinnelsesland: |
Tolltariff: |
Heat output (kW - kcal/h - BTU/h): Trinn 1: 80 - 68.804 - 275.214 / Trinn 2: 117,26 - 100.847 - 403.387 |
Air volume (m3/h): 5500 |
Temperature increase at 20 ° C (°C): 60-75 |
Fuel consumption (kg/h): 6,33 - 9,278 |
Fuel tank (ltr): 135 |
Power consumption (W): 1820 |
Voltage (V/phase/Hz): 230/1/50 |
Chimney diameter (mm): 150 |
Diameter of hot air 1-2 outlets (mm): 500 - 400 |
Dimensions lxwxh (mm): 1918x731x1220 |
Weight (kg): 149/174 |
Product information

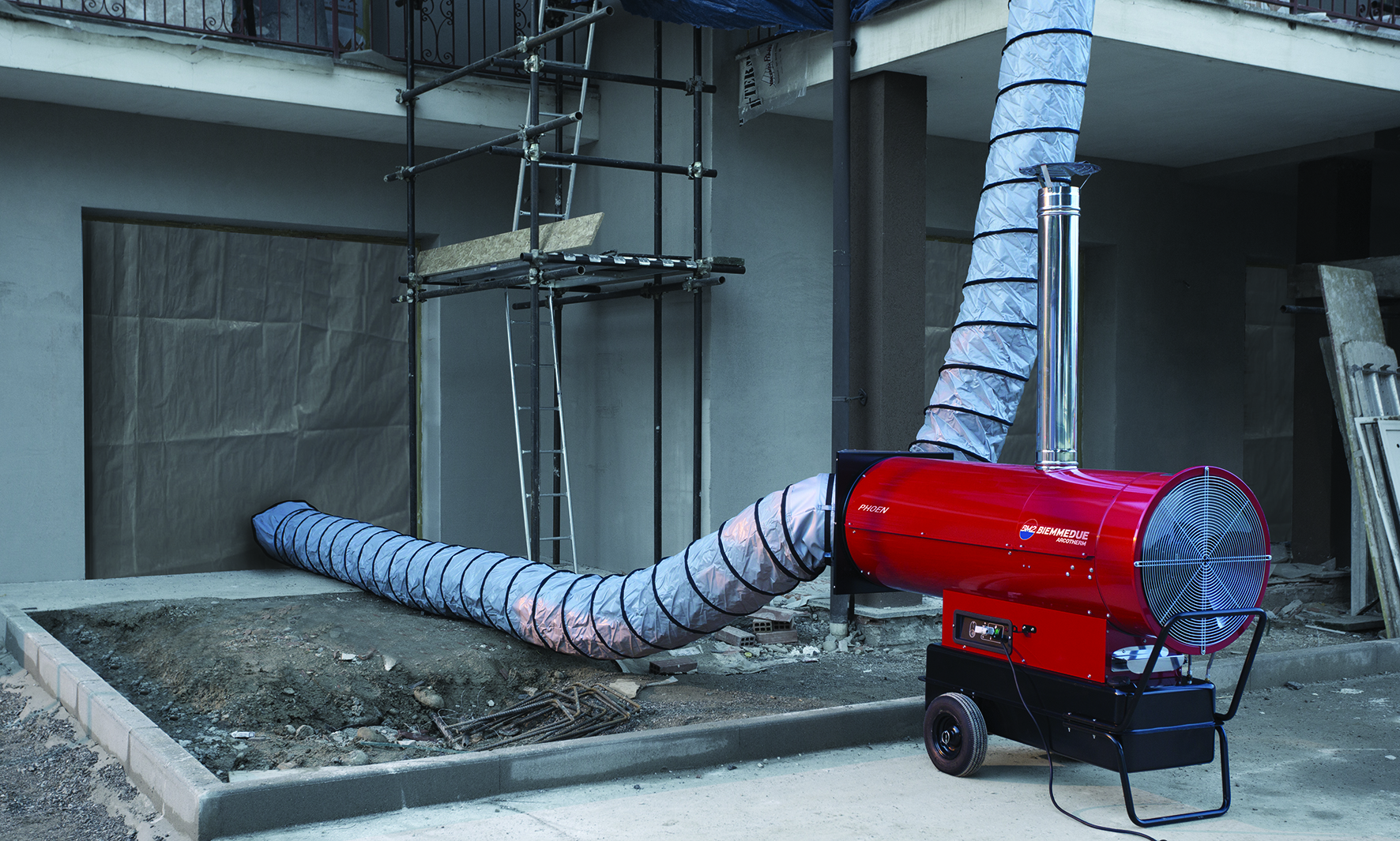

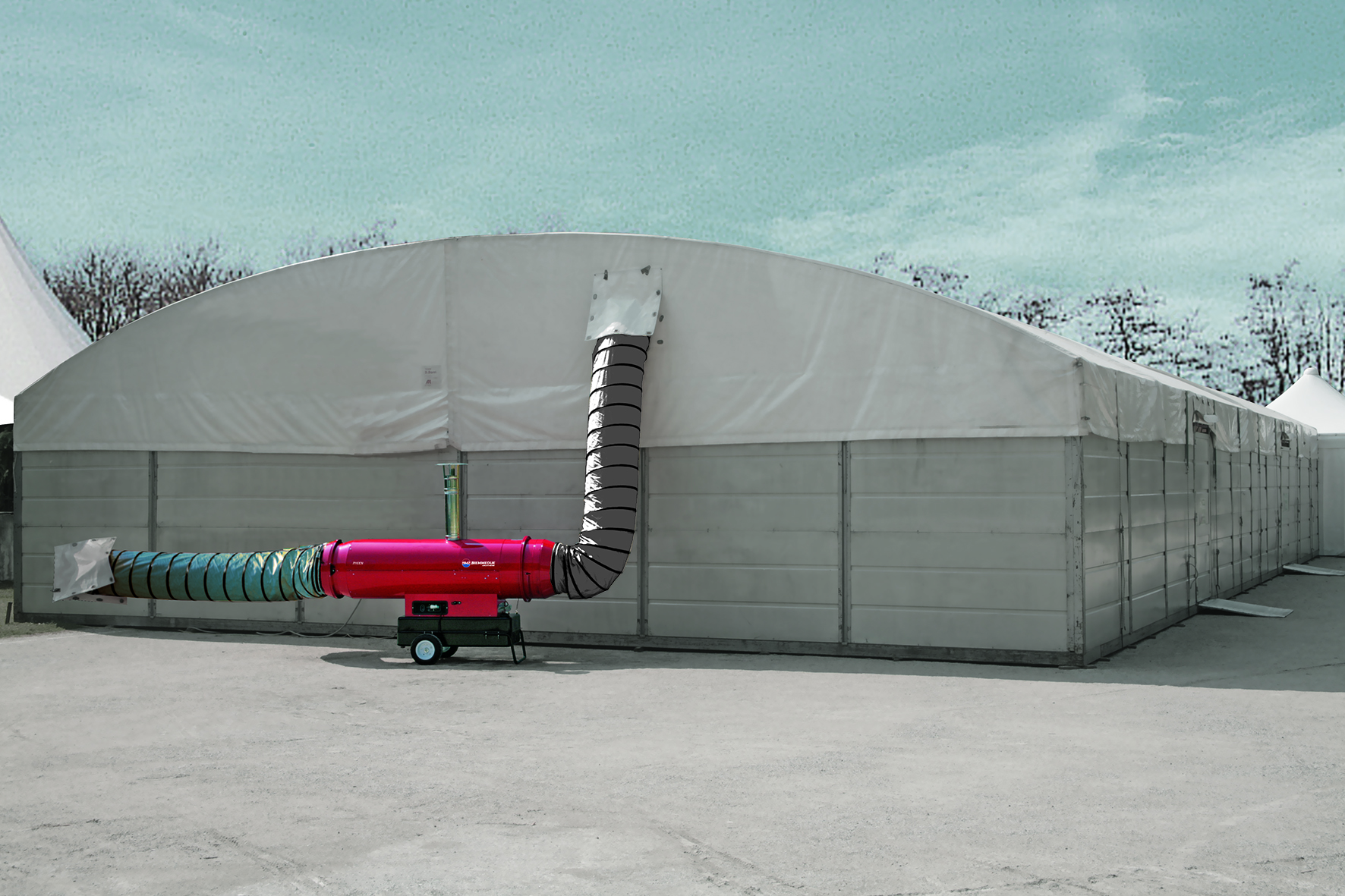

Produktinfo.Phoen 110 is a very efficient and reliable space heater with 2 combustion stages and a separate diesel pump. It can run with diesel or kerosene and has a very clean combustion. Phoen 110 has a separate combustion chamber and hot air chamber. The clean indirect heated air is led out through the front, while the exhaust / flue gas is led out through the chimney at the top. It has a solid steel frame with drive handles that are powder coated to withstand a rough environment. Large solid wheels make the machine easy to transport. Phoen 110 is equipped with Danfoss diesel pump, photoelectric flame monitor and safety thermostat with manual reset in addition, it also has a automatic cooling function. The combustion chamber is in AISI430 stainless steel which provides maximum service life. Can be connected to thermostat and external diesel tank. Phoen 110 is suitable for drying buildings, construction sites and for heating large areas. Particularly suitable for indoor use where animals or humans are present.
